Systemic::Pixels::PixelInfo Class Reference

Common accessible values between Pixel advertised data and a connected Pixel. More...

#include <PixelInfo.h>

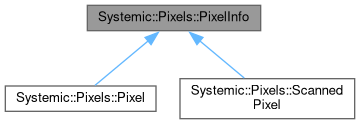

Inheritance diagram for Systemic::Pixels::PixelInfo:

Public Types
using	Date = std::chrono::system_clock::time_point
	Type for a system Date.

Public Member Functions
virtual bluetooth_address_t	systemId () const =0
	Gets the unique id assigned by the OS to Pixel Bluetooth peripheral. More...
virtual bluetooth_address_t	address () const =0
	Gets the Bluetooth address of the Pixel. More...
virtual pixel_id_t	pixelId () const =0
	Gets the unique Pixel id of the die. More...
virtual const std::wstring &	name () const =0
	Gets the Pixel name. More...
virtual int	ledCount () const =0
	Gets the number of LEDs of the Pixel. More...
virtual PixelDesignAndColor	designAndColor () const =0
	Gets the design and color of the Pixel. More...
virtual Date	firmwareDate () const =0
	Gets the firmware build date of the Pixel. More...
virtual int	rssi () const =0
	Gets the last RSSI value measured by the Pixel. More...
virtual int	batteryLevel () const =0
	Gets the Pixel battery level (percentage). More...
virtual bool	isCharging () const =0
	Indicates whether the Pixel battery is charging or not. Set to 'true' if fully charged but still on charger. More...
virtual PixelRollState	rollState () const =0
	Gets the Pixel roll state. More...
virtual int	currentFace () const =0
	Gets the Pixel face value that is currently facing up. More...
DieType	dieType ()
	Gets die type of the Pixel. More...
int	dieFaceCount ()
	Gets the number of faces of the Pixel. More...

Detailed Description

Common accessible values between Pixel advertised data and a connected Pixel.

Member Function Documentation

address()

virtual bluetooth_address_t Systemic::Pixels::PixelInfo::address ( ) const

pure virtual

Gets the Bluetooth address of the Pixel.

Returns

The Bluetooth address of the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

batteryLevel()

virtual int Systemic::Pixels::PixelInfo::batteryLevel ( ) const

pure virtual

Gets the Pixel battery level (percentage).

Returns

The Pixel battery level (percentage).

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

currentFace()

virtual int Systemic::Pixels::PixelInfo::currentFace ( ) const

pure virtual

Gets the Pixel face value that is currently facing up.

Returns

The Pixel face value that is currently facing up.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

designAndColor()

virtual PixelDesignAndColor Systemic::Pixels::PixelInfo::designAndColor ( ) const

pure virtual

Gets the design and color of the Pixel.

Returns

The design and color of the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

dieFaceCount()

int Systemic::Pixels::PixelInfo::dieFaceCount

(

)

Gets the number of faces of the Pixel.

Returns

The number of faces of the Pixel.

dieType()

DieType Systemic::Pixels::PixelInfo::dieType

(

)

Gets die type of the Pixel.

Returns

The Pixel type.

firmwareDate()

virtual Date Systemic::Pixels::PixelInfo::firmwareDate ( ) const

pure virtual

Gets the firmware build date of the Pixel.

Returns

The firmware build date of the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

isCharging()

virtual bool Systemic::Pixels::PixelInfo::isCharging ( ) const

pure virtual

Indicates whether the Pixel battery is charging or not. Set to 'true' if fully charged but still on charger.

Returns

Whether the Pixel battery is charging or not.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

ledCount()

virtual int Systemic::Pixels::PixelInfo::ledCount ( ) const

pure virtual

Gets the number of LEDs of the Pixel.

Returns

The number of LEDs of the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

name()

virtual const std::wstring & Systemic::Pixels::PixelInfo::name ( ) const

pure virtual

Gets the Pixel name.

Returns

The Pixel name.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

pixelId()

virtual pixel_id_t Systemic::Pixels::PixelInfo::pixelId ( ) const

pure virtual

Gets the unique Pixel id of the die.

Returns

The unique Pixel id of the die.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

rollState()

virtual PixelRollState Systemic::Pixels::PixelInfo::rollState ( ) const

pure virtual

Gets the Pixel roll state.

Returns

The Pixel roll state.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

rssi()

virtual int Systemic::Pixels::PixelInfo::rssi ( ) const

pure virtual

Gets the last RSSI value measured by the Pixel.

Returns

The last RSSI value measured by the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

systemId()

virtual bluetooth_address_t Systemic::Pixels::PixelInfo::systemId ( ) const

pure virtual

Gets the unique id assigned by the OS to Pixel Bluetooth peripheral.

Note

This member exist only to keep similar interface than other implementations, the Bluetooth address is returned.

Returns

The unique id for the Pixel.

Implemented in Systemic::Pixels::Pixel, and Systemic::Pixels::ScannedPixel.

---

The documentation for this class was generated from the following file:

• Systemic/Pixels/PixelInfo.h
