#include <Pixel.h>

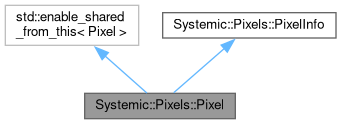

Inheritance diagram for Systemic::Pixels::Pixel:

Public Types
enum class	ConnectResult { Success , ConnectionFailed , Cancelled , IdentificationMismatch , IdentificationTimeout , SubscriptionError }
	List of possible Pixel connection results. More...

Public Types inherited from Systemic::Pixels::PixelInfo
using	Date = std::chrono::system_clock::time_point
	Type for a system Date.

Public Member Functions
virtual	~Pixel ()=default
	Default virtual destructor.

PixelStatus	status () const
	Gets the last known connection status of the Pixel. More...

bool	isReady () const
	Indicates whether the Pixel status is "ready". More...

virtual bluetooth_address_t	systemId () const override
	Gets the unique id assigned by the OS to Pixel Bluetooth peripheral. More...

virtual bluetooth_address_t	address () const override
	Gets the Bluetooth address of the Pixel. More...

virtual pixel_id_t	pixelId () const override
	Gets the unique Pixel id of the die. More...

virtual const std::wstring &	name () const override
	Gets the Pixel name. More...

virtual int	ledCount () const override
	Gets the number of LEDs of the Pixel. More...

virtual PixelDesignAndColor	designAndColor () const override
	Gets the design and color of the Pixel. More...

virtual Date	firmwareDate () const override
	Gets the firmware build date of the Pixel. More...

virtual int	rssi () const override
	Gets the last RSSI value measured by the Pixel. More...

virtual int	batteryLevel () const override
	Gets the Pixel battery level (percentage). More...

virtual bool	isCharging () const override
	Indicates whether the Pixel battery is charging or not. Set to 'true' if fully charged but still on charger. More...

virtual PixelRollState	rollState () const override
	Gets the Pixel roll state. More...

virtual int	currentFace () const override
	Gets the Pixel face value that is currently facing up. More...

std::future< ConnectResult >	connectAsync ()
	Asynchronously tries to connect to the die. More...

void	disconnect ()
	Immediately disconnects from the die.

std::future< bool >	sendMessageAsync (Messages::MessageType type, bool withoutAck=false)
	Sends a message to the Pixel. More...

template<typename T , std::enable_if_t< std::is_base_of_v< Messages::PixelMessage, T >, int > = 0>
std::future< bool >	sendMessageAsync (const T &message, bool withoutAck=false)
	Sends a message to the Pixel. More...

template<class Rep , class Period >
std::future< std::shared_ptr< const Messages::PixelMessage > >	sendAndWaitForResponseAsync (Messages::MessageType type, Messages::MessageType responseType, std::chrono::duration< Rep, Period > timeout=std::chrono::seconds(5))
	Sends a message to the Pixel and wait for a specific reply. More...

std::future< std::shared_ptr< const Messages::PixelMessage > >	sendAndWaitForResponseAsync (Messages::MessageType type, Messages::MessageType responseType)
	Sends a message to the Pixel and wait for a specific reply. More...

template<class Rep , class Period >
std::future< bool >	reportRssiAsync (bool activate, std::chrono::duration< Rep, Period > minInterval)
	Requests the Pixel to regularly send its measured RSSI value. More...

std::future< bool >	reportRssiAsync (bool activate=true)
	Requests the Pixel to regularly send its measured RSSI value. More...

std::future< bool >	turnOffAsync ()
	Requests the Pixel to turn itself off. More...

template<class Rep , class Period >
std::future< bool >	blinkAsync (std::chrono::duration< Rep, Period > duration, uint32_t rgbColor, int count=1, float fade=1)
	Requests the Pixel to blink. More...

Public Member Functions inherited from Systemic::Pixels::PixelInfo
virtual bluetooth_address_t	systemId () const =0
	Gets the unique id assigned by the OS to Pixel Bluetooth peripheral. More...

virtual bluetooth_address_t	address () const =0
	Gets the Bluetooth address of the Pixel. More...

virtual pixel_id_t	pixelId () const =0
	Gets the unique Pixel id of the die. More...

virtual const std::wstring &	name () const =0
	Gets the Pixel name. More...

virtual int	ledCount () const =0
	Gets the number of LEDs of the Pixel. More...

virtual PixelDesignAndColor	designAndColor () const =0
	Gets the design and color of the Pixel. More...

virtual Date	firmwareDate () const =0
	Gets the firmware build date of the Pixel. More...

virtual int	rssi () const =0
	Gets the last RSSI value measured by the Pixel. More...

virtual int	batteryLevel () const =0
	Gets the Pixel battery level (percentage). More...

virtual bool	isCharging () const =0
	Indicates whether the Pixel battery is charging or not. Set to 'true' if fully charged but still on charger. More...

virtual PixelRollState	rollState () const =0
	Gets the Pixel roll state. More...

virtual int	currentFace () const =0
	Gets the Pixel face value that is currently facing up. More...

DieType	dieType ()
	Gets die type of the Pixel. More...

int	dieFaceCount ()
	Gets the number of faces of the Pixel. More...

Static Public Member Functions
static std::shared_ptr< Pixel >	create (bluetooth_address_t address, std::shared_ptr< PixelDelegate > delegate=nullptr)
	Initializes a new instance of Pixel for the device with the given Bluetooth address. More...

static std::shared_ptr< Pixel >	create (const ScannedPixel &scannedPixel, std::shared_ptr< PixelDelegate > delegate=nullptr)
	Initializes a new instance of Pixel for the device corresponding to the given scanned Pixel data. More...

Detailed Description

Represents a Pixels die.

The delegate object passed to the constructor is used to notify of events such as connection status changes or rolls.

Call the connectAsync() method to initiate a connection with the physical die.

This class is thread safe.

Member Enumeration Documentation

◆ ConnectResult

enum class Systemic::Pixels::Pixel::ConnectResult

strong

List of possible Pixel connection results.

Enumerator
Success	Connection has succeeded.
ConnectionFailed	Connection with the actual device failed.
Cancelled	Connection was canceled (usually because of a call to Pixel.disconnect()).
IdentificationMismatch	Connection failed because the die Pixel id is not the expected one.
IdentificationTimeout	Connection failed because the die didn't identify itself in time.
SubscriptionError	Connection failed because subscribing to the Bluetooth characteristic failed.

Member Function Documentation

◆ address()

virtual bluetooth_address_t Systemic::Pixels::Pixel::address ( ) const

overridevirtual

Gets the Bluetooth address of the Pixel.

Returns: The Bluetooth address of the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ batteryLevel()

virtual int Systemic::Pixels::Pixel::batteryLevel ( ) const

overridevirtual

Gets the Pixel battery level (percentage).

Returns: The Pixel battery level (percentage).

Implements Systemic::Pixels::PixelInfo.

◆ blinkAsync()

template<class Rep , class Period >

std::future< bool > Systemic::Pixels::Pixel::blinkAsync	(	std::chrono::duration< Rep, Period >	duration,
		uint32_t	rgbColor,
		int	count = `1`,
		float	fade = `1`
	)

Requests the Pixel to blink.

Template Parameters

Rep	Duration arithmetic type representing the number of ticks.
Period	Duration type representing the tick period.

Parameters

duration	Total duration of the animation.
rgbColor	Blink color.
count	Number of blinks.
fade	Amount of in and out fading, 0: sharp transition, 1: maximum fading.

Returns: A future with a boolean indicating whether the operation succeeded.

◆ connectAsync()

std::future< ConnectResult > Systemic::Pixels::Pixel::connectAsync ( )

Asynchronously tries to connect to the die.

Note: The request times out after 7 to 20s if device is not reachable.

Returns: A future with the result of the operation.

◆ create() [1/2]

static std::shared_ptr< Pixel > Systemic::Pixels::Pixel::create	(	bluetooth_address_t	address,
		std::shared_ptr< PixelDelegate >	delegate = `nullptr`
	)

static

Initializes a new instance of Pixel for the device with the given Bluetooth address.

Parameters

address	The expected Bluetooth address of the Pixels die.
delegate	The object to receive event notifications from this instance.

Returns: A Pixel instance in a shared pointer.

Note: The delegate virtual methods should not block the thread and complete their operations quickly.

◆ create() [2/2]

static std::shared_ptr< Pixel > Systemic::Pixels::Pixel::create	(	const ScannedPixel &	scannedPixel,
		std::shared_ptr< PixelDelegate >	delegate = `nullptr`
	)

static

Initializes a new instance of Pixel for the device corresponding to the given scanned Pixel data.

Parameters

scannedPixel	The scanned Pixel data identifying the die.
delegate	The object to receive event notifications from this instance.

Returns: A Pixel instance in a shared pointer.

Note: The delegate virtual methods should not block the thread and complete their operations quickly.

◆ currentFace()

virtual int Systemic::Pixels::Pixel::currentFace ( ) const

overridevirtual

Gets the Pixel face value that is currently facing up.

Returns: The Pixel face value that is currently facing up.

Implements Systemic::Pixels::PixelInfo.

◆ designAndColor()

virtual PixelDesignAndColor Systemic::Pixels::Pixel::designAndColor ( ) const

overridevirtual

Gets the design and color of the Pixel.

Returns: The design and color of the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ firmwareDate()

virtual Date Systemic::Pixels::Pixel::firmwareDate ( ) const

overridevirtual

Gets the firmware build date of the Pixel.

Returns: The firmware build date of the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ isCharging()

virtual bool Systemic::Pixels::Pixel::isCharging ( ) const

overridevirtual

Indicates whether the Pixel battery is charging or not. Set to 'true' if fully charged but still on charger.

Returns: Whether the Pixel battery is charging or not.

Implements Systemic::Pixels::PixelInfo.

◆ isReady()

bool Systemic::Pixels::Pixel::isReady ( ) const

Indicates whether the Pixel status is "ready".

Returns: Whether the Pixel status is "ready".

◆ ledCount()

virtual int Systemic::Pixels::Pixel::ledCount ( ) const

overridevirtual

Gets the number of LEDs of the Pixel.

Returns: The number of LEDs of the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ name()

virtual const std::wstring & Systemic::Pixels::Pixel::name ( ) const

overridevirtual

Gets the Pixel name.

Returns: The Pixel name.

Implements Systemic::Pixels::PixelInfo.

◆ pixelId()

virtual pixel_id_t Systemic::Pixels::Pixel::pixelId ( ) const

overridevirtual

Gets the unique Pixel id of the die.

Returns: The unique Pixel id of the die.

Implements Systemic::Pixels::PixelInfo.

◆ reportRssiAsync() [1/2]

template<class Rep , class Period >

std::future< bool > Systemic::Pixels::Pixel::reportRssiAsync	(	bool	activate,
		std::chrono::duration< Rep, Period >	minInterval
	)

Requests the Pixel to regularly send its measured RSSI value.

Template Parameters

Rep	Duration arithmetic type representing the number of ticks.
Period	Duration type representing the tick period.

Parameters

activate	Whether to turn or turn off this feature.
minInterval	The minimum time interval in seconds between two RSSI updates.

Returns: A future with a boolean indicating whether the operation succeeded.

◆ reportRssiAsync() [2/2]

std::future< bool > Systemic::Pixels::Pixel::reportRssiAsync ( bool activate = true )

Requests the Pixel to regularly send its measured RSSI value.

Parameters

activate Whether to turn or turn off this feature.

Returns: A future with a boolean indicating whether the operation succeeded.

◆ rollState()

virtual PixelRollState Systemic::Pixels::Pixel::rollState ( ) const

overridevirtual

Gets the Pixel roll state.

Returns: The Pixel roll state.

Implements Systemic::Pixels::PixelInfo.

◆ rssi()

virtual int Systemic::Pixels::Pixel::rssi ( ) const

overridevirtual

Gets the last RSSI value measured by the Pixel.

Returns: The last RSSI value measured by the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ sendAndWaitForResponseAsync() [1/2]

std::future< std::shared_ptr< const Messages::PixelMessage > > Systemic::Pixels::Pixel::sendAndWaitForResponseAsync	(	Messages::MessageType	type,
		Messages::MessageType	responseType
	)

Sends a message to the Pixel and wait for a specific reply.

Parameters

type	Type of message to send.
responseType	Type of the response to expect.

Returns: A message object or nullptr in a shared pointer.

◆ sendAndWaitForResponseAsync() [2/2]

template<class Rep , class Period >

std::future< std::shared_ptr< const Messages::PixelMessage > > Systemic::Pixels::Pixel::sendAndWaitForResponseAsync	(	Messages::MessageType	type,
		Messages::MessageType	responseType,
		std::chrono::duration< Rep, Period >	timeout = `std::chrono::seconds(5)`
	)

Sends a message to the Pixel and wait for a specific reply.

Template Parameters

Rep	Duration arithmetic type representing the number of ticks.
Period	Duration type representing the tick period.

Parameters

type	Type of message to send.
responseType	Type of the response to expect.
timeout	Timeout before aborting waiting for the response.

Returns: A message object or nullptr in a shared pointer.

◆ sendMessageAsync() [1/2]

template<typename T , std::enable_if_t< std::is_base_of_v< Messages::PixelMessage, T >, int > = 0>

std::future< bool > Systemic::Pixels::Pixel::sendMessageAsync	(	const T &	message,
		bool	withoutAck = `false`
	)

Sends a message to the Pixel.

Template Parameters

T	Type of the message.

Parameters

message	Message to send.
withoutAck	Whether to request a confirmation that the message was received.

Returns: A future with a boolean indicating whether the operation succeeded.

◆ sendMessageAsync() [2/2]

std::future< bool > Systemic::Pixels::Pixel::sendMessageAsync	(	Messages::MessageType	type,
		bool	withoutAck = `false`
	)

Sends a message to the Pixel.

Parameters

type	Type of message to send.
withoutAck	Whether to request a confirmation that the message was received.

Returns: A future with a boolean indicating whether the operation succeeded.

◆ status()

PixelStatus Systemic::Pixels::Pixel::status ( ) const

Gets the last known connection status of the Pixel.

Returns: The last known connection status of the Pixel.

◆ systemId()

virtual bluetooth_address_t Systemic::Pixels::Pixel::systemId ( ) const

overridevirtual

Gets the unique id assigned by the OS to Pixel Bluetooth peripheral.

Note: This member exist only to keep similar interface than other implementations, the Bluetooth address is returned.

Returns: The unique id for the Pixel.

Implements Systemic::Pixels::PixelInfo.

◆ turnOffAsync()

std::future< bool > Systemic::Pixels::Pixel::turnOffAsync ( )

Requests the Pixel to turn itself off.

Returns: A future with a boolean indicating whether the operation succeeded.

The documentation for this class was generated from the following file:

Systemic/Pixels/Pixel.h

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Enumeration Documentation

◆ ConnectResult

Member Function Documentation

◆ address()

◆ batteryLevel()

◆ blinkAsync()

◆ connectAsync()

◆ create() [1/2]

◆ create() [2/2]

◆ currentFace()

◆ designAndColor()

◆ firmwareDate()

◆ isCharging()

◆ isReady()

◆ ledCount()

◆ name()

◆ pixelId()

◆ reportRssiAsync() [1/2]

◆ reportRssiAsync() [2/2]

◆ rollState()

◆ rssi()

◆ sendAndWaitForResponseAsync() [1/2]

◆ sendAndWaitForResponseAsync() [2/2]

◆ sendMessageAsync() [1/2]

◆ sendMessageAsync() [2/2]

◆ status()

◆ systemId()

◆ turnOffAsync()
