Common types used across the Systemic::Pixel namespace. More...

#include <cstdint>

Include dependency graph for PixelTypes.h:

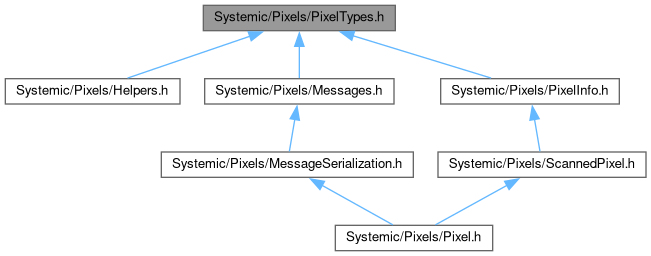

This graph shows which files directly or indirectly include this file:

Namespaces
namespace	Systemic::Pixels
	A collection of C++ classes and types to scan for and connect to Pixels dice.

Typedefs
using	Systemic::Pixels::pixel_id_t = uint32_t
	Type for a Pixel Id.

Enumerations
enum class	Systemic::Pixels::PixelDesignAndColor : uint8_t { Unknown , Generic , V3Orange , V4BlackClear , V4WhiteClear , V5Grey , V5White , V5Black , V5Gold , OnyxBlack , HematiteGrey , MidnightGalaxy , AuroraSky }
	Available combinations of Pixel designs and colors.

enum class	Systemic::Pixels::PixelRollState : uint8_t { Systemic::Pixels::Unknown , Systemic::Pixels::OnFace , Systemic::Pixels::Handling , Systemic::Pixels::Rolling , Systemic::Pixels::Crooked }
	Pixel roll states. More...

enum class	Systemic::Pixels::PixelBatteryState : uint8_t { Systemic::Pixels::Ok , Systemic::Pixels::Low , Systemic::Pixels::Charging , Systemic::Pixels::Done , Systemic::Pixels::BadCharging , Systemic::Pixels::Error }
	The different possible battery charging states. More...

enum class	Systemic::Pixels::DieType { D20 , D12 , D10 , D8 , D6 , D6Pipped , D6Fudge , D4 }
	The different types of dice.

Detailed Description

Common types used across the Systemic::Pixel namespace.
